T40Y 4 Lane liquid Packaging Machine

Application:

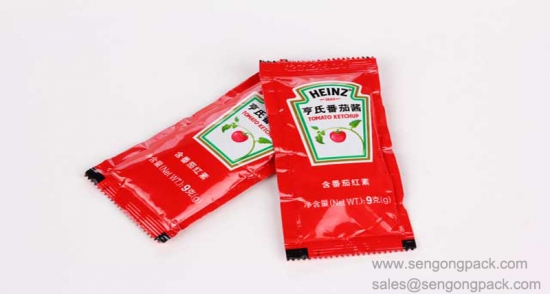

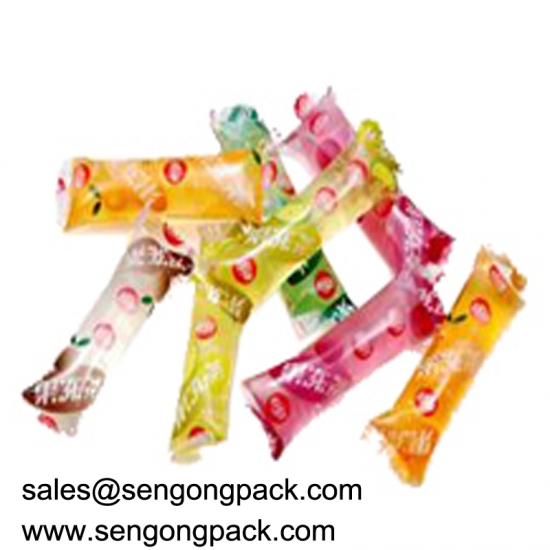

It is suitable for automatic packing of viscous and free flowing products such oil,sauce,honey,tomato ketchup,syrup,lotion etc.

Features:

1. The machine can automatically perform bag-forming, measuring, filling, sealing, cutting and counting. If necessary, it can equip with other devices like the batch number printer according to customer’s requirement.

2. The machine adopts advanced PLC microcomputer control system, and installs drive stepper motor to control the bag length, with stable performance, simple adjustment, accurate detection.

3. The machine use intelligent temperature controller, PID regulator, ensuring to keep the temperature error under within below 1 ℃.

4. The machine uses 3 sides sealing.

Technical data:

Machine type:High Speeed  Packing Machine Series

Machine model: T40Y

Machine name:  Automatic liquid paste products packing machine

Filling range:3-15ml(50-200ml can be customized)

Bag size range: L:30-110MM,  W:30-80MM

Packing capacity:  30-60 bags/min

Sealing method: 3 sides sealing

Power: 220V，50HZ，1.9KW

Machine weight: 400KGS

Machine dimension: 900mm*700mm*1800mm(L*W*H)
